PRODUCT FAMILY CODE
CTCHEGD |
SIZES
| 500 L |
CTCHEGD500 |
| 1000 L |
CTCHEGD1000 |
| 2000 L |
CTCHEGD2000 |
|
APPLICATIONS
-
Intermediate Bulk Containers with UN31A/Y approval for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III, Classes 3,5,6,8 & 9 when used in accordance with the relevant code.
-

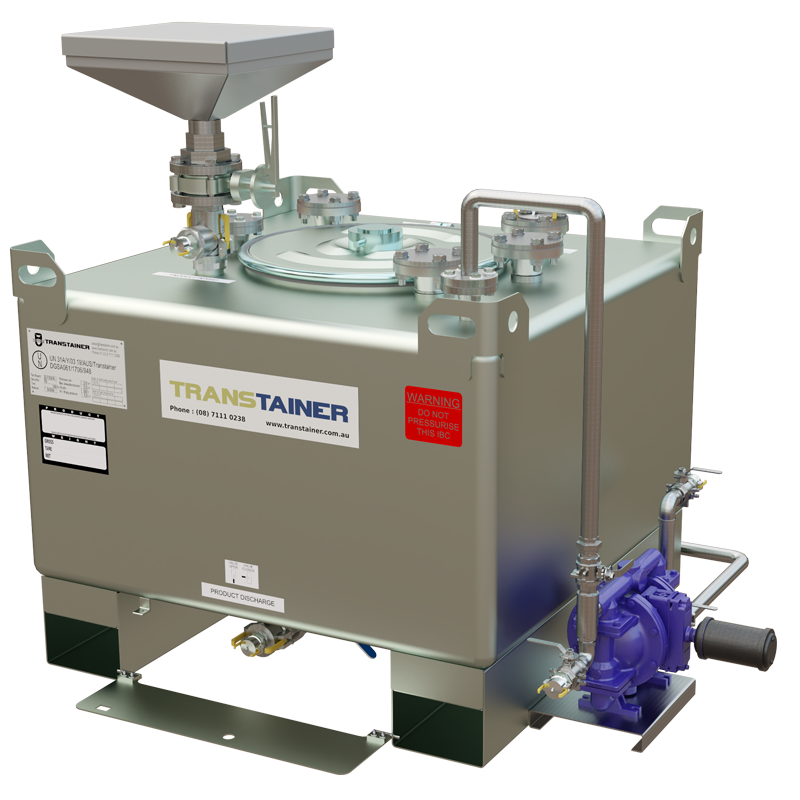

The Dangerous Goods series of square stainless steel IBCs are specifically designed for the semi bulk storage, transportation and dispensing of liquids classified as Dangerous Goods.
-
The Dangerous Goods IBCs are both top fill and top discharge for applications where product integrity is critical.
-
The square design of the Dangerous Goods IBCs optimizes space requirements for both transportation and warehousing.
-
They are ideally suited for the delivery, storage, transportation and decanting of dangerous goods.
|
FEATURES
-
Square shape maximizes the use of a standard pallet space
-
Combination manway pressure / vacuum vent allows easy access while providing emergency venting in the event of a fire
-
Two way heavy duty skid assembly protects the base of the unit from fork toyne damage
-
Coaming on roof of IBC protects valving and vents from damage
-
Can be double stacked which optimizes storage of the units.
-
50mm outlet has a 25mm riser pipe to minimize drawing off contaminant that may have settled.
-
Areas subject to wear and tear are reinforced with guard plates
-
Radius corners are part of the robust design requirements of our customers.
|
STANDARD EQUIPMENT
-
Discharge: 50mm ball valve c/w camlocks
-
Fill: 50mm fill tube c/w camlocks
-
Vents: Pressure venting 21 kPa
-
Vacuum venting –3.5 kPa
-
Temperature relief 138°C
|
OPTIONS
|
